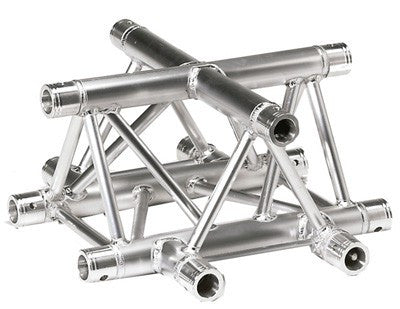

The TR-4100-U/D is a 90º 4-way horizontal cross junction in either the apex up or down orientation.
This truss is very strong and durable to handle the rigors of the road
yet is nicely finished and lite weight to serve decorative and trade
show event needs. This corner will add .5m (1.64') to each side of the corner.
Actual size - 11-7/16'' wide
2'' diameter main tube
3/4'' diameter brace tube
.08'' wall thickness
6082-T6 aluminum alloy
Conical couplers for easy and quick assembly
Special reinforced, thicker truss ends for stronger connection points than other brands
Connection hardware included (1 set per section)
Wide variety of corners available
Ready to ship!
Please give us a call at 1-800-793-5308
and tell us about your project! We'd be happy to assist you in
determining what will work best for your situation, give you a list of
items you'll need, a freight cost shipped to your doorstep and a FREE
CAD drawing so you can see what your finished product will look like! Due to shipping circumstances we do not offer this product for sale online. Please call to order.
