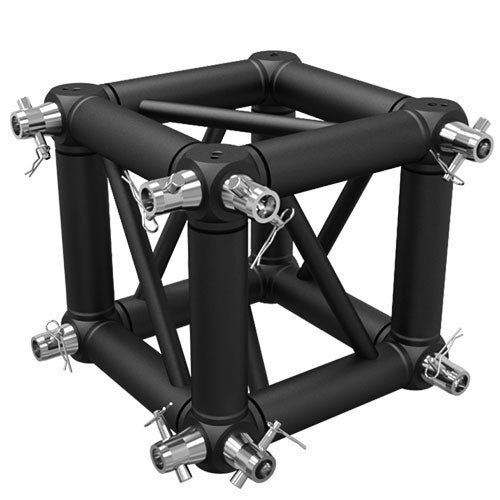

The UJB gives you any 90º junction you'd like just by adding additional half coupler pieces. Two sides of couplers are included so you are ready to make a 2-way 90º right out of the box. Need it to be a three or four way junction? Simply bolt on additional half-couplers and you're there.
The UJB is made from the same high strength 6082-T6 aluminum as the rest of our 12'' truss. 6082 aluminum alloy is gaining in popularity over the 6061 alloy that is often used in truss fabrication because it has a higher tensile (10%-18% stronger). What does this mean for you? A superior product in both strength and finish while retaining the low cost and lightweight features!
Most of our customers don't even begin to test the load limits of our truss...so what are some more practical features that might be more pertinent to the average user? One such feature is the specialized conical coupler connection system. The coupler receivers, couplers and securing pins are all tapered which means a much tighter and stronger joint than you might find with other truss types. Additionally the couplers are solid pieces of machined aluminum and the coupler receivers are almost four times thicker than the rest of the truss for an extra measure of strength at a crucial point. This connection system also means quicker and easier connection than others on the market. Simply insert the coupler, push through the pin and secure it with the r-clip. No nuts, bolts or washers to lose and no need for special tools or wrenches.
Perhaps best of all our truss is pre-fabricated and ready to ship to your doorstep!
Please give us a call at 1-800-793-5308 to discuss your needs and receive a quote...we're here to help. We offer a free, no obligation, design service for those designing a trade show booth or other structure.
11-7/16'' aluminum box truss
2'' O.D. main tube
3/4'' O.D. brace tube
.08'' wall thickness
2 sets of half coupler hardware included
Additional sides can be added by installing more half couplers
