Quad Phase HP

American DJ

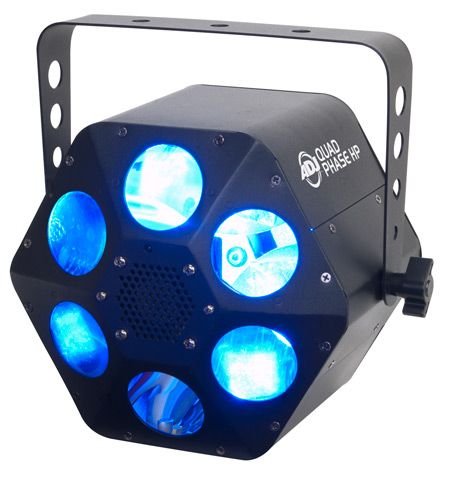

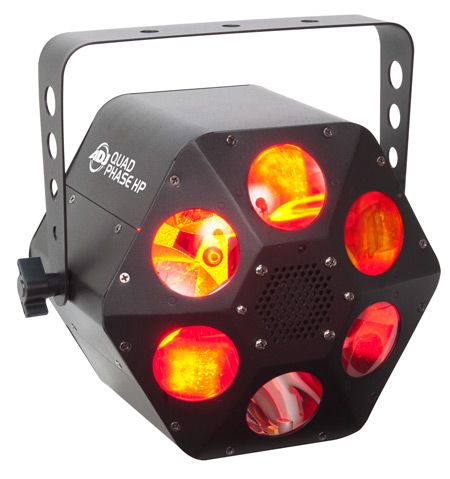

The American DJ Quad Phase HP features a powerful 32-watt quad-color LED source, which consists of four 8-watt RGBW (red, green, blue, white) LEDs. This advanced LED technology allows for intense and bright output, producing vivid colors and sharp beams of light. The quad-color capability enables smooth color mixing, providing a wide range of hues to choose from.

The fixture offers multiple operating modes, including DMX control, sound-activated mode, and standalone operation. When using DMX control, the Quad Phase HP can be integrated into a larger lighting setup, allowing for precise control over its color, pattern, and movement. The sound-activated mode enables the fixture to sync with the music, creating dynamic light shows that react to the rhythm and beat.


Quad Phase HP Features include:

  • High output Moonflower effect with 32-Watt Quad-Color LED 4-in-1 (Red, Green, Blue, White) technology produces color-changing beams of light
  • Dozens of razor sharp beams fill a dance floor, ceiling or wall
  • Using a 1.8 Degree Long Life Stepper motor Technology it can produce quick accurate movement or smooth fluid move movements for mood music
  • 4 DMX Channels (Color, Rotation, Strobe, Shutter)
  • 3 Operating Modes - Show Mode; Sound Active; DMX Controlled
  • Stand Alone or Primary/Secondary Configuration
  •  Produces 15 Preset Colors
  •  Linkable via 3-pin XLR cable
  •  4-button DMX display on rear panel
  •  Beam Angle: 65 degree
  •  Strobe & Pulse LED Effect
  •  DMX-512 Protocol
  •  Electronic Dimming: 0 - 100%
  •  Runs extremely cool! - NO Duty Cycles! - Run all night!
  •  Includes UC IR Wireless Remote
  •  Compatible with the ADJ Airstream IR App

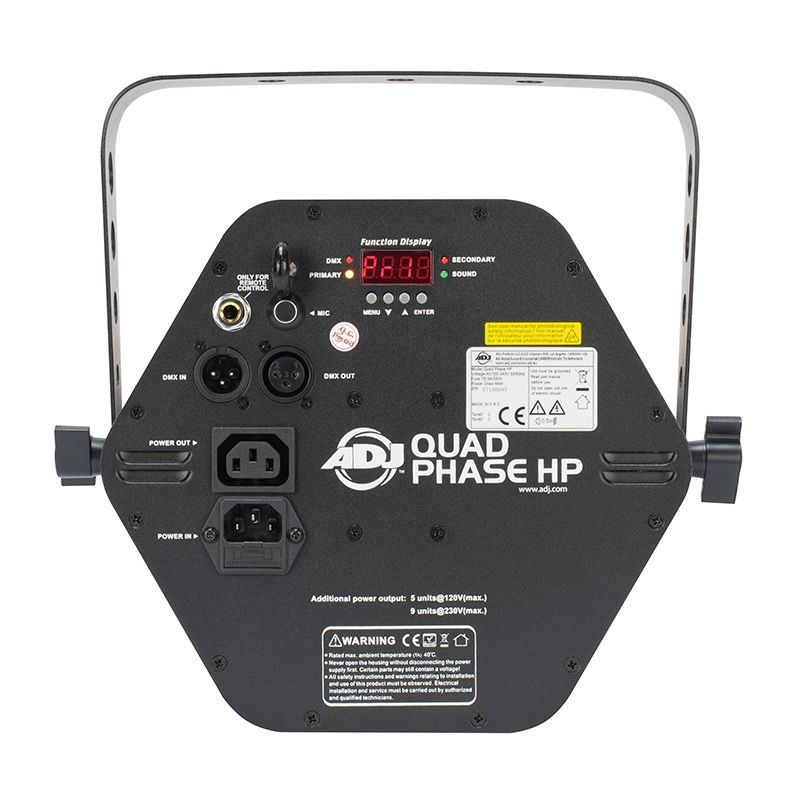

  •  IEC AC IN/OUT on rear to daisy chain power (up to 5 Quad Phase HP’s @ 120V and 9 Quad Phase HP’s @ 230V )
  • Safety hook on rear panel
  • Power Draw: 64W Max
  • Multi voltage: 100V~240V, 50/60Hz
  • Long life LEDs (30,000 hr. rating)
  • Light Source: 32W RGBW LED 4-in-1
  • Dimensions (LxWxH): 12.5” x 8” x 11” / 312 x 198 x 279mm
  • Weight: 9 lbs. / 4 kg.
