Applied L-16M

The Applied Electronics L-16M is a long time industry standard for mobile applications. The L-16M can be set up by a single user in approx. 2 min! With an engineer certified 500lb. weight capacity limit at any height the L-16 will handle most lighting and sound requirements with ease! The primary difference between the L-16M and the standard version is the adjustable outriggers allowing the user to set it up on uneven ground.

L-16M Features:

• 16' maximum height
• Adapts to uneven ground by use of adjustable outriggers

• 500lbs maximum load

• Integrated casters
• Collapsible legs with adjustable leveling pads

• 2'' square top tube with .188'' wall thickness
• 4'' square base tube

• Heavy duty self braking winch

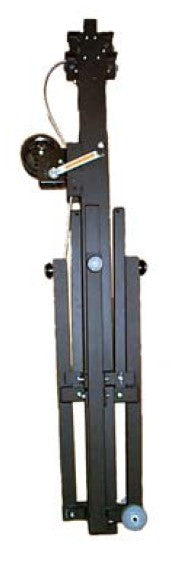

• Collapse dimensions: 16'' x 18'' x 81''

L-16 Available accessories:

• Triangle truss adapter
• Box truss adapter
• Club truss adapter
• Speaker adapter

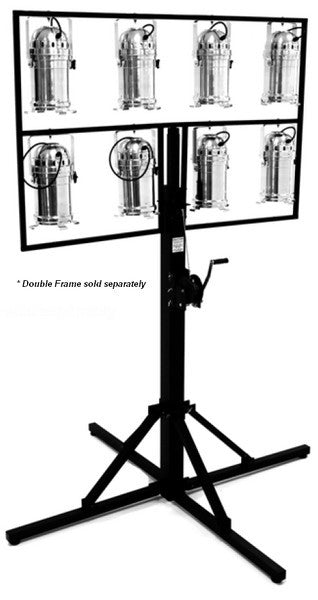

• Double frame adapter
• T-bar adapter
