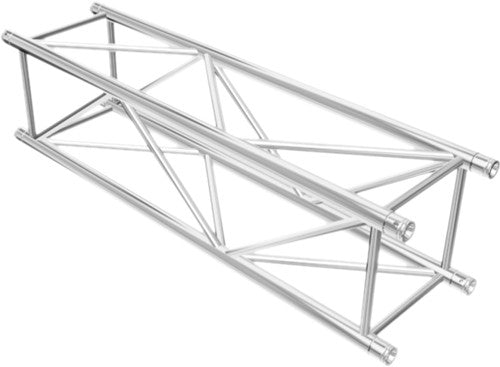

The SQ-4167P is a 3.5m (11.48') straight section of 16'' heavy duty box truss made from high
strength 6082-T6 aluminum alloy. 6082 aluminum
alloy is gaining in popularity over the 6061 alloy that is often used
in truss fabrication because it has a higher tensile (10%-18% stronger)
and higher corrosion resistance due to a lower copper content. What
does this mean for you? A superior product in both strength and finish
while retaining the low cost and lightweight features!
What are some more practical features that might be more
pertinent to the average user? One such feature is the specialized
conical coupler connection system. The coupler receivers, couplers and
securing pins are all tapered which means a much
tighter and stronger joint than you might find with other truss types.
Additionally the couplers are solid pieces of machined aluminum and the
coupler receivers are almost four times thicker than the rest of the
truss for an extra measure of strength at a crucial point. This
connection system also means quicker and easier connection than other
on the market. Simply insert the coupler, push through the pin
and secure it with the r-clip. No nuts, bolts or washers to lose and
no need for special tools or wrenches.
Perhaps best of all our truss is pre-fabricated and ready to ship to your doorstep!
Please give us a call at 1-800-793-5308
to discuss your needs and receive a quote...we're here to help. We
offer a free, no obligation, design service for those designing a trade
show booth or other structure.
- 15-3/4'' aluminum box truss
- 2'' O.D. main tube
- 1'' O.D. brace tube
- .12'' wall thickness
- 1 set of coupler hardware included
- Natural aluminum finish (has a "sheen")
- Pre-fabricated and ready to ship
